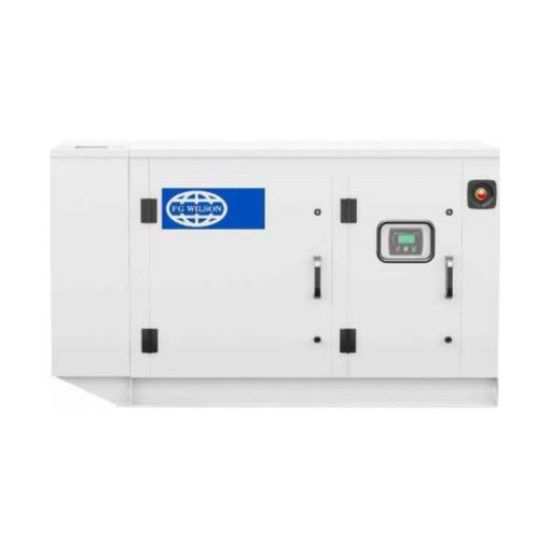

New and complete FG Wilson Diesel P22-6 enclosed 415V generating set.
Prime Rating 20kVA/16kW @ 50Hz/1500rpm.

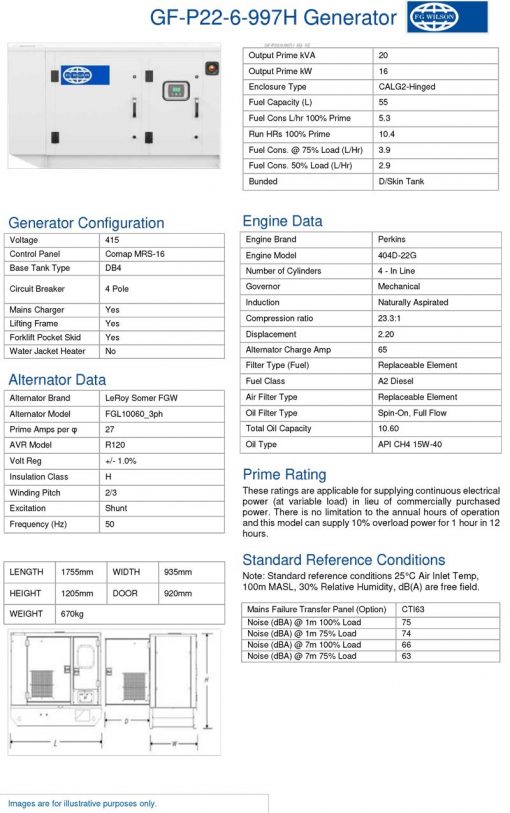

SPECIFICATIONS:
• Number of Phases: Three Phase
• Engine: Perkins 404D-22G
• Alternator: LeRoy Somer FGW FGL10060_3ph
• Power Output: 22kVA/17.6kW max; 20kVA/16kW prime
• Power Factor: 0.8
• Rated Current: 27A per phase
• Voltage: 415V
• Frequency / Engine Speed: 50Hz / 1500rpm
• Fuel Tank Capacity: 55L
• Fuel Consumption @ 100% Load: 5.3L/hour
• Run Hours @ 100% load: 10.4 hours
• Noise (dBA) @ 7m 100% Load: 66
• Dimensions L x W x H (mm): 1755 x 935 x 1205
• Weight net: 670kg
• Canopy: Enclosed Canopy for quiet operation
• Control Panel/Display: Comap MRS-16 With E-Stop
• 2 Wire Auto Start/Stop: Built-in
